Industrial bearing supply
Every machine turns on a tolerance this tight.
Debraj Bearing Solutions stocks and supplies ball, roller, thrust and linear motion bearings for OEMs, distributors and maintenance teams — matched to load, speed and the conditions your equipment actually runs in.
Product gallery
Browse by category
Illustrative renders — swap these tiles for your own product photography whenever it's ready.
Product range
Types of bearings we supply
Each bearing family handles load and speed differently. Tell us the application and we'll match the right series, seal type and tolerance class.
Deep groove ball bearings
The general-purpose workhorse — low friction, quiet running, handles radial load with moderate axial load in both directions.
Angular contact ball bearings
Contact angle between the races lets these carry combined radial and one-directional axial load — common in pumps and spindles.
Self-aligning ball bearings
A spherical outer raceway lets the bearing tolerate shaft misalignment and deflection — useful where housing alignment can't be guaranteed.
Cylindrical roller bearings
Line contact between roller and race spreads radial load over a larger area than balls — built for heavy radial loads at moderate speed.
Tapered roller bearings
Conical rollers and races carry heavy combined radial and axial loads — the standard choice for wheel hubs and axles.
Spherical roller bearings
Two rows of barrel-shaped rollers on a common spherical raceway — very heavy loads plus self-aligning capability, for mills and crushers.
Needle roller bearings
Thin, long rollers keep the cross-section small for the load carried — the choice when radial space around the shaft is tight.
Thrust ball bearings
Races stacked flat to carry axial (thrust) load along the shaft axis, with little or no radial load — common under vertical shafts.

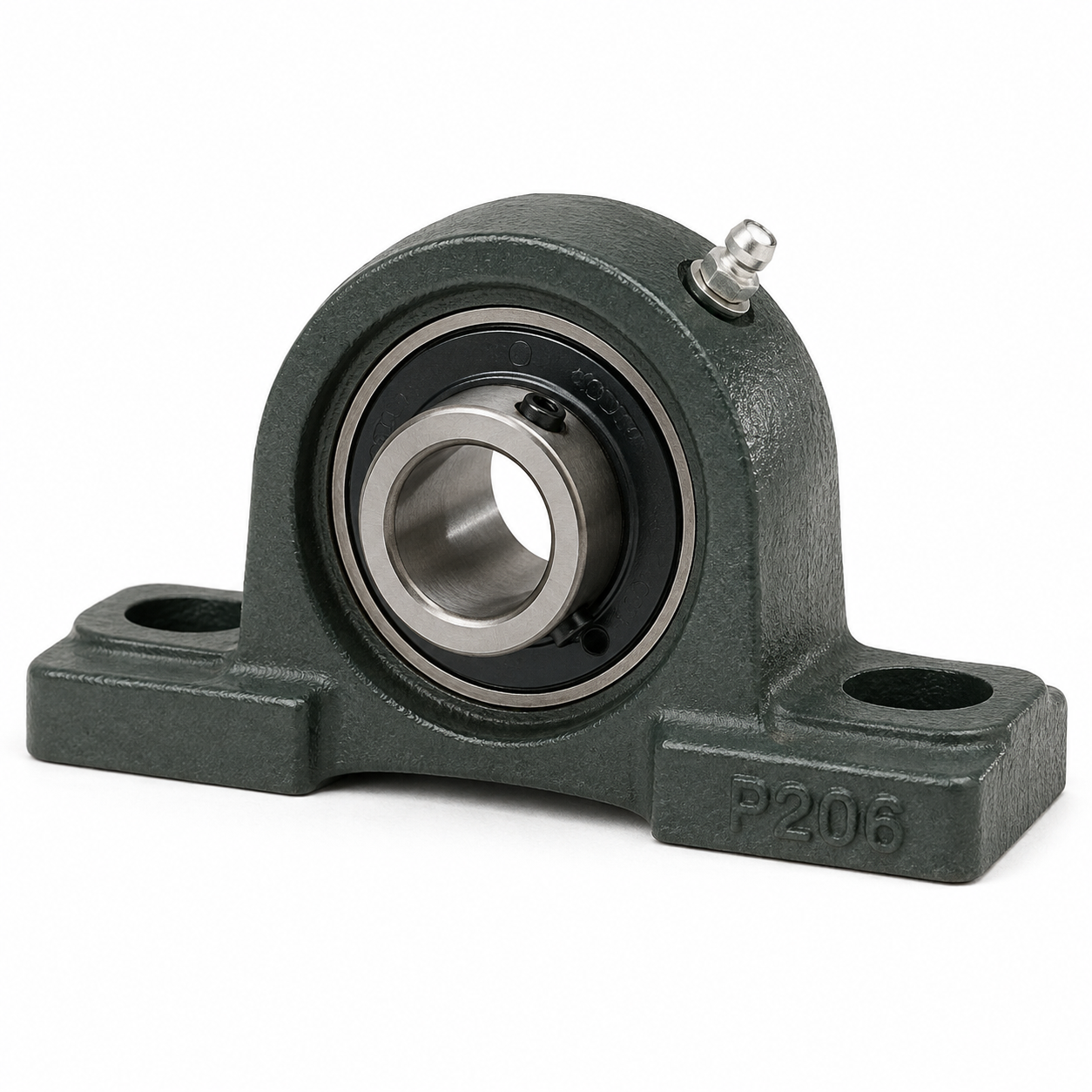

Pillow block / housed units
A bearing pre-mounted in a cast or pressed housing, ready to bolt to a frame — fast to fit and simple to service in the field.

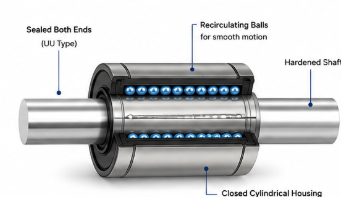

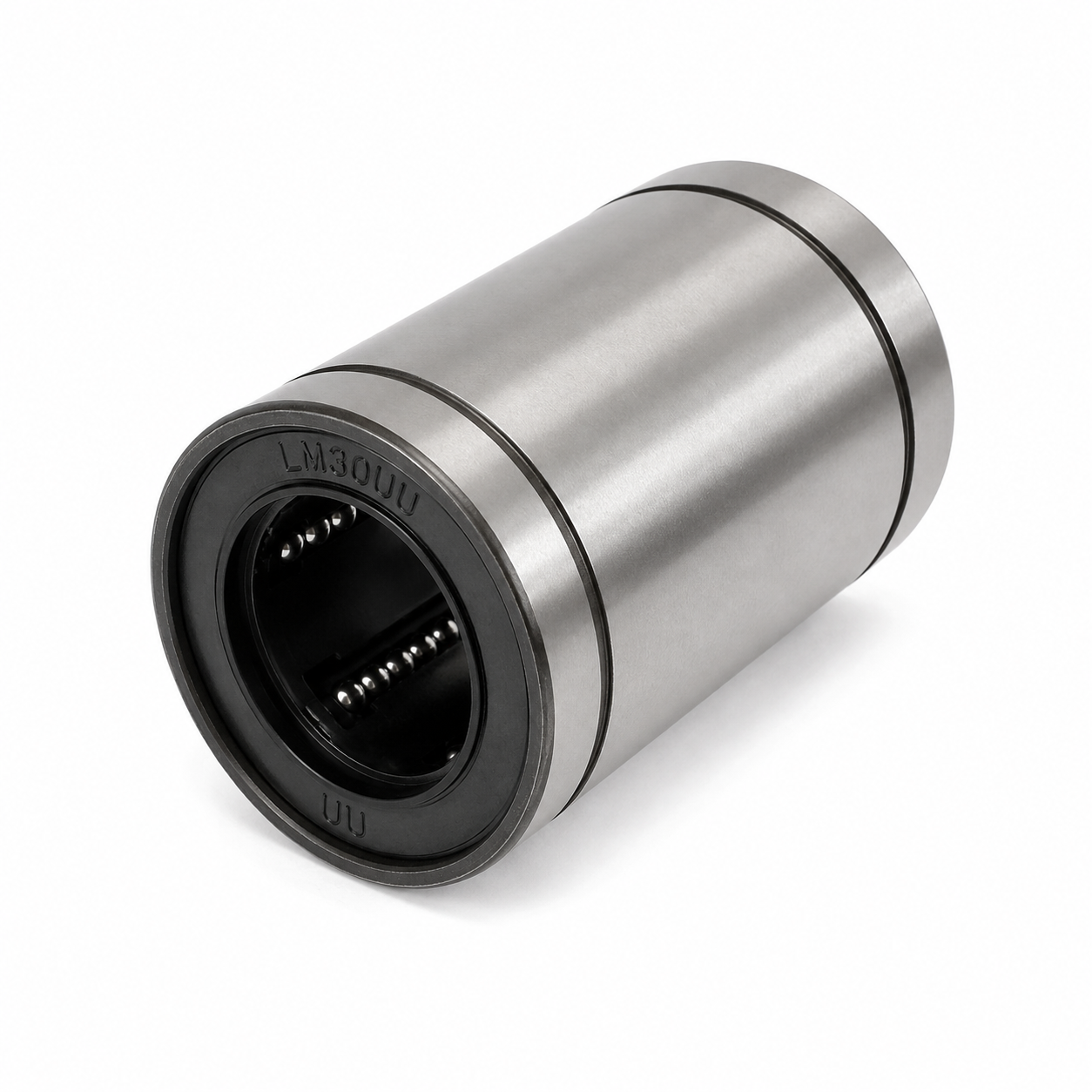

Linear motion bearings
Ball or roller elements that recirculate along a rail or shaft for straight-line travel — used on slides, actuators and CNC axes.
Technical reference
Bearing specifications by category
One representative bearing from each family we stock, with full designation, dimensions, load ratings and typical application. Tap a row to open it.
Deep groove ball bearings
Single row, radial — general purpose

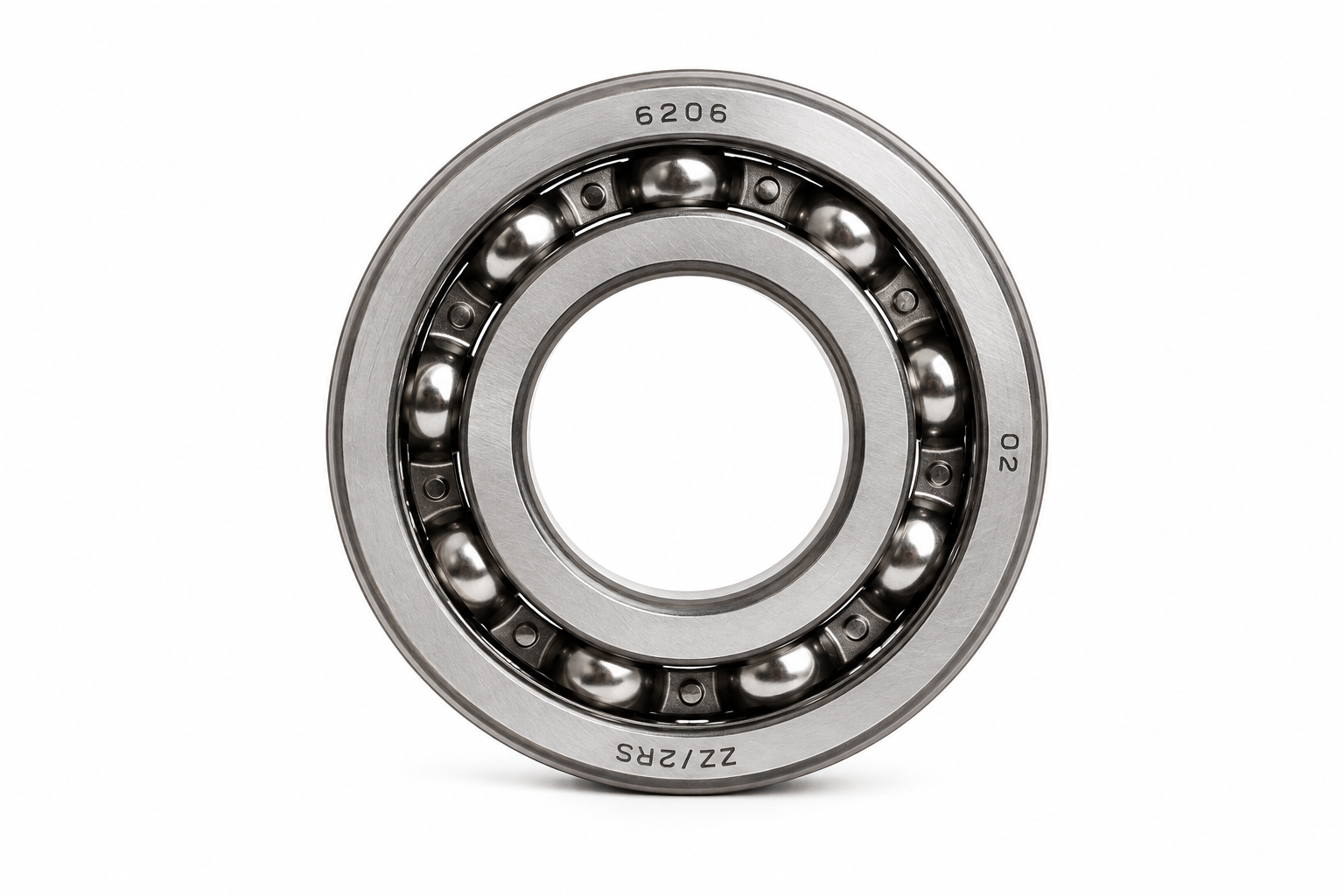

6206
Single-row deep groove ball bearing
⌀30 × ⌀62 × 16 mm
0.20 kg
Open / ZZ / 2RS
Product photo
Key characteristics
Designation breakdown
| 6 | Bearing type — deep groove ball bearing |
| 2 | Dimension series — light (02) |
| 06 | Bore code — 06 × 5 = 30 mm bore |
| ZZ / 2RS | Optional shield or contact seal suffix |
Purpose & application: The default choice for radial load with light axial load in both directions at moderate-to-high speed — electric motors, gearboxes, pumps, fans and general power transmission.

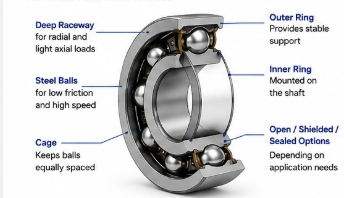

How 6206 bearing is used
The 6206 bearing supports the rotating shaft, reduces friction and ensures smooth, efficient and long-lasting performance.
Function in equipment
Designed to carry radial loads and light axial loads in both directions.
Suitable for high-speed rotation up to 9,500 rpm (grease lubricated).
Ensures smooth rotation, less heat generation and longer service life.
High-quality steel construction ensures durability and consistent performance.
Widely used in motors, machines, pumps, gearboxes, fans and conveyors.
Typical applications
- Electric Motors
- Gearboxes & Transmission Systems
- Pumps & Water Pumps
- Fans & Blowers
- Conveyors & Material Handling
- Automotive Applications (Alternators, Wheel Hubs)
- General Industrial Machinery
- Agricultural Equipment
Key benefits
- ✓High radial load carrying capacity
- ✓Smooth and quiet operation
- ✓High speed capability
- ✓Long service life and reliability
- ✓Available in open, shielded (ZZ) and sealed (2RS) options
- ✓Widely available and cost-effective
Angular contact ball bearings
Single row, 40° contact angle — combined load

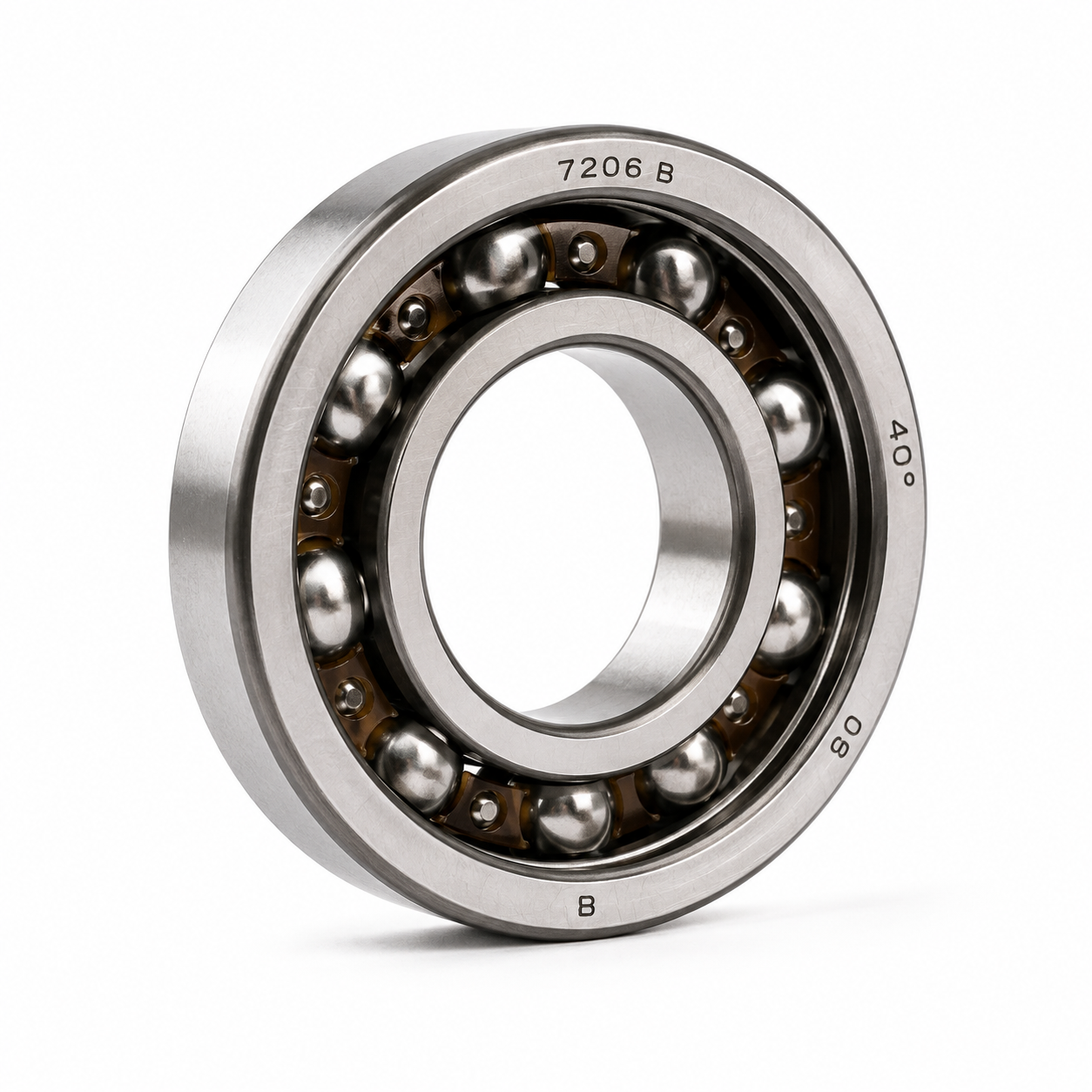

7206 B
Single-row angular contact ball bearing
⌀30 × ⌀62 × 16 mm
0.20 kg
40° contact angle
Product photo
Key characteristics
Designation breakdown
| 7 | Bearing type — angular contact ball bearing |
| 2 | Dimension series — light (02) |
| 06 | Bore code — 06 × 5 = 30 mm bore |
| B | Contact angle suffix — 40° (A = 30°, C = 15°) |
Purpose & application: Carries combined radial and one-directional axial load at high speed — machine tool spindles, pumps, compressors and gearbox pinion shafts, usually mounted in matched pairs.

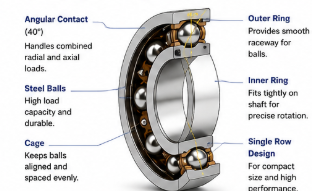

How 7206 B bearing is used
The 7206 B bearing is mounted in pairs or sets to manage axial loads effectively and ensure stable, precise operation.
Function in equipment
Carries radial loads and axial loads in one direction efficiently.
Ensures accurate positioning and stable operation at high speeds.
Suitable for high-speed applications up to 8,500 rpm (grease lubricated).
Reduces vibration, friction and wear, extending service life of machines.
When used in pairs (DB, DF or DT), it provides excellent axial load capacity and stiffness.
Typical applications
- Machine Tool Spindles
- Ball Screws & Lead Screws
- Gearboxes
- Pumps & Water Pumps
- Compressors
- Electric Motors
- Printing Machines
- Textile Machinery
- Industrial Fans & Blowers
- General Industrial Machinery
Key benefits
- ✓Carries combined radial and one-directional axial loads
- ✓High precision and rigidity
- ✓High-speed performance
- ✓Low friction and smooth operation
- ✓Long service life and durability
- ✓Compact and versatile design
- ✓Suitable for various mounting arrangements (DB, DF, DT)
- ✓Reliable performance in demanding applications
Self-aligning ball bearings
Double row, spherical outer raceway — misalignment tolerant

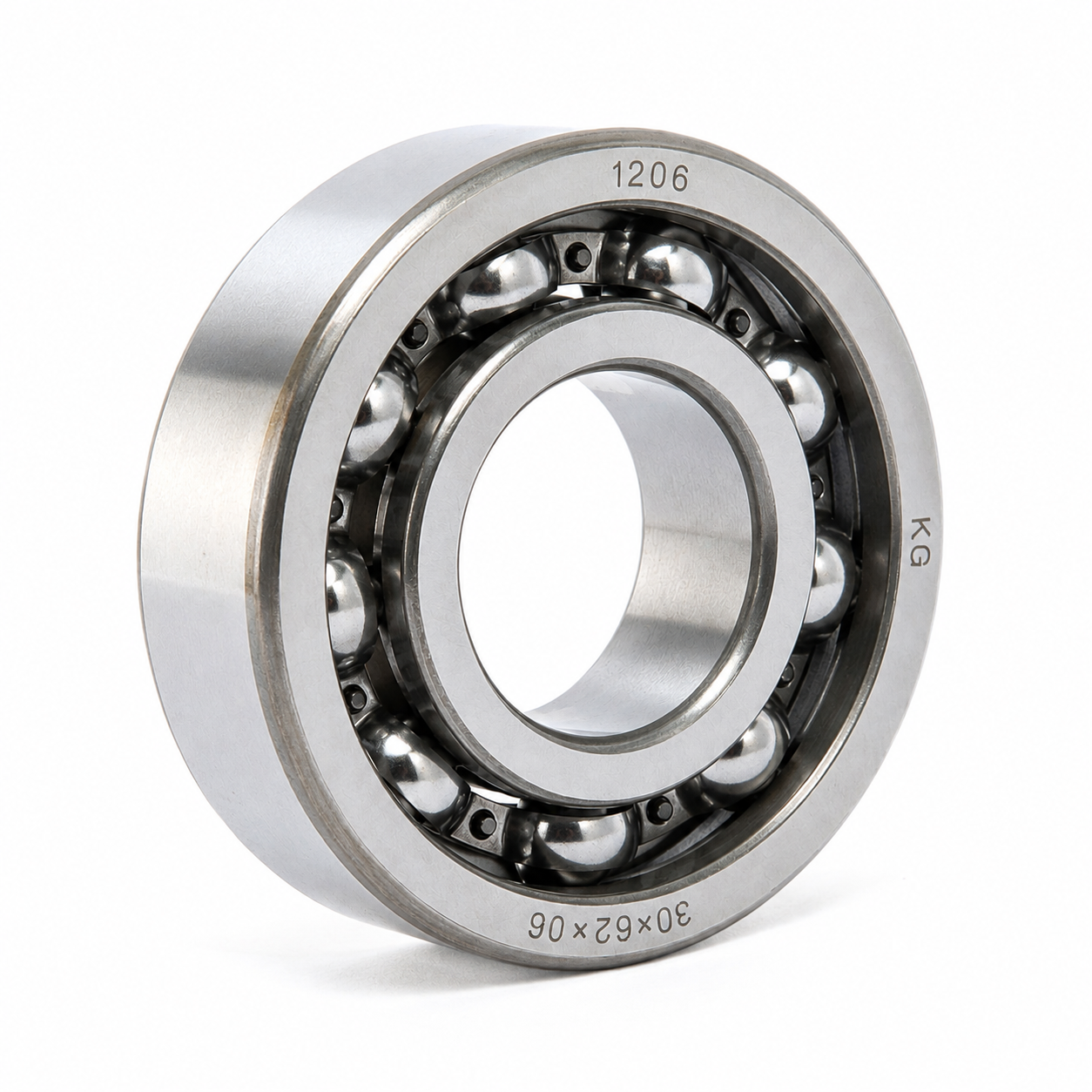

1206
Double-row self-aligning ball bearing
⌀30 × ⌀62 × 16 mm
0.19 kg
±2.5° misalignment
Product photo
Key characteristics
Designation breakdown
| 1 | Bearing type — self-aligning ball bearing |
| 2 | Dimension series — light (02) |
| 06 | Bore code — 06 × 5 = 30 mm bore |
| K | Optional suffix — tapered 1:12 bore for adapter sleeve mounting |
Purpose & application: Absorbs shaft deflection and housing misalignment that a rigid bearing can't — long shafts, plummer blocks, agricultural and conveyor drives where perfect alignment can't be guaranteed.

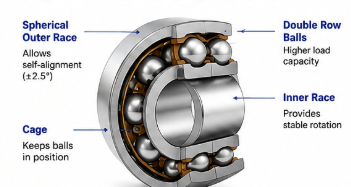

How double-row self-aligning ball bearing works
The 1206 self-aligning ball bearing can automatically adjust for shaft misalignment and ensures smooth, reliable and noiseless operation.
Function in equipment
Maintains smooth operation even with angular errors.
Carries heavy radial loads with reduced wear.
Handles high-speed and continuous running conditions.
Reduces maintenance and increases equipment reliability.
Ensures smooth, quiet performance.
Typical applications
- Electric Motors & Gearboxes
- Pumps & Water Pumps
- Conveyors & Material Handling
- Automotive Applications (Alternators, Wheel Hubs)
- Printing Machines & Packaging Equipment
- Textile Machinery
- Industrial Fans & Blowers
- General Industrial Machinery
Cylindrical roller bearings
Single row, separable — heavy radial load

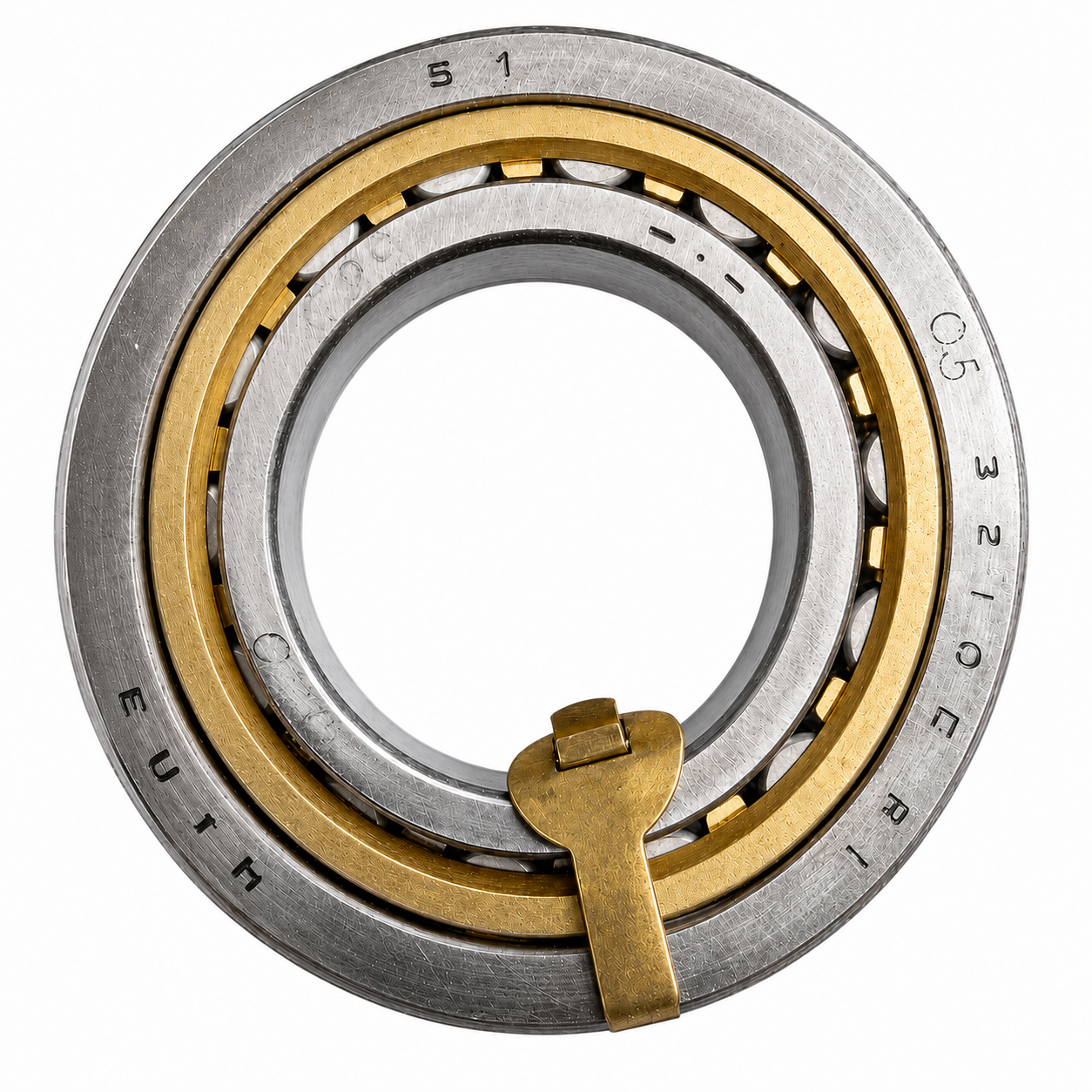

05-32106 P1
Single-row cylindrical roller bearing, separable
⌀30 × ⌀55 × 13 mm
Roller, radial
Product photo
Key characteristics
Designation breakdown
| 05 | Accuracy class — increased |
| 32 | Diameter range — increased |
| 106 | Series — medium |
| P | Separator type — stamped steel |
| 1 | Increased accuracy |
Purpose & application: Intended for mechanisms requiring reliable radial bearings.
Bearing 05-32106 P1

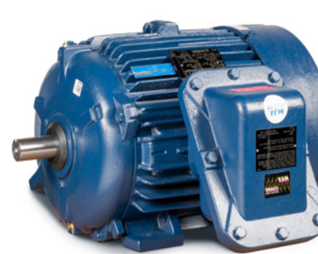

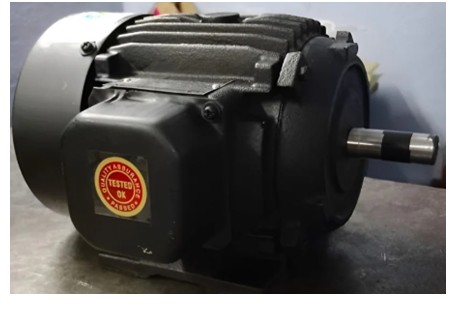

Electric Induction Motor (AC Motor – TEFC Type)
It is commonly called:
- Industrial Electric Motor
- Squirrel Cage Induction Motor
An electric motor converts electrical energy into mechanical rotation.
🔧 Typical Use in Applications:
- Pumps & water systems
- Industrial fans & blowers
- Compressors
- Conveyor belts
- Machine tools
- Textile & chemical industries
Tapered roller bearings
Single row, conical rollers — combined heavy load

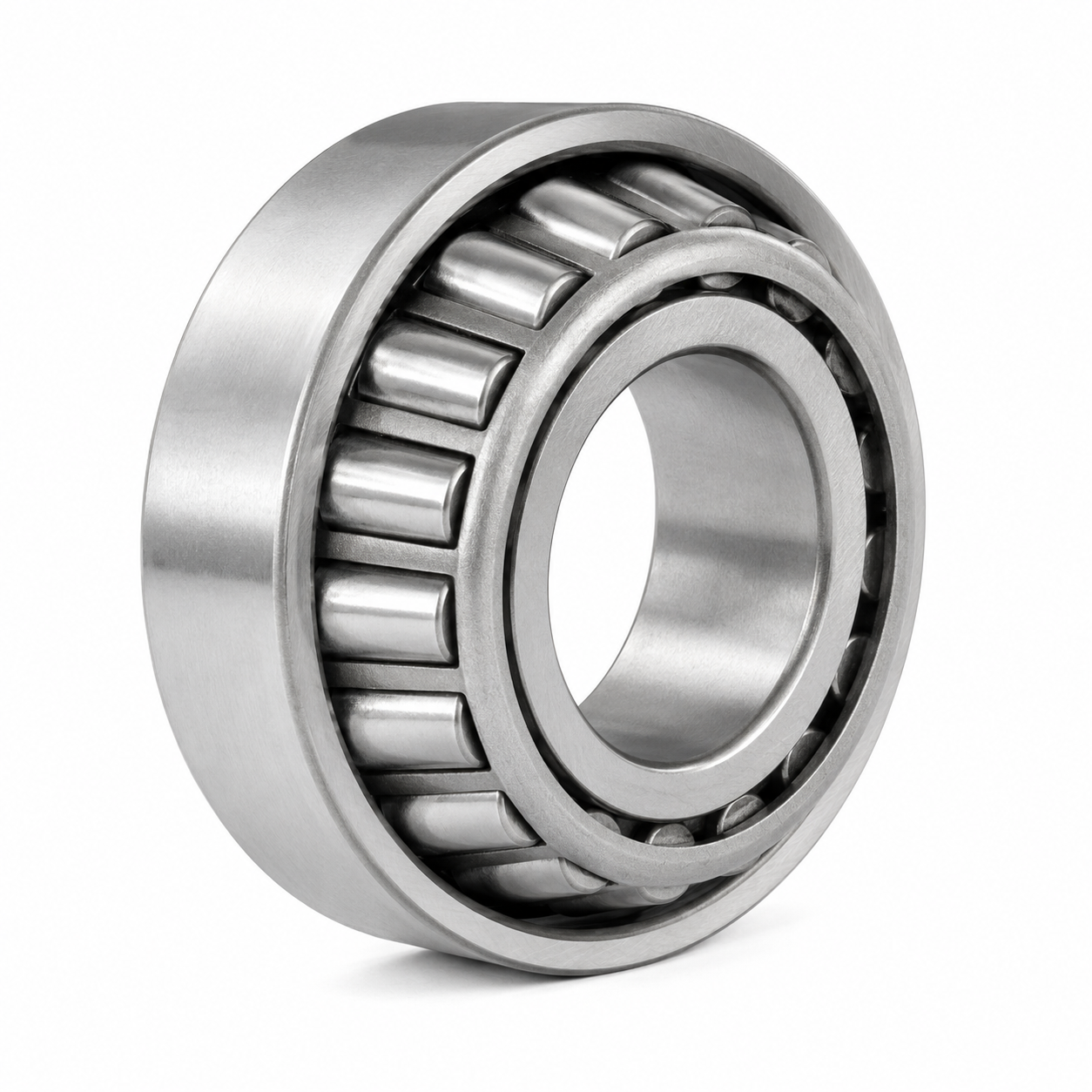

30206
Single-row tapered roller bearing
⌀30 × ⌀62 × 17.25 mm
0.27 kg
~14° contact angle
Product photo
Key characteristics
Designation breakdown
| 3 | Bearing type — tapered roller bearing |
| 0 | Cup angle series — normal |
| 2 | Dimension series — light (02) |
| 06 | Bore code — 06 × 5 = 30 mm bore |
Purpose & application: Conical rollers and races carry heavy combined radial and one-directional axial load — wheel hubs, differentials, gearbox input/output shafts; commonly mounted in opposed pairs to take thrust both ways.
How 30206 bearing is used
Tapered roller bearings are usually mounted in opposed pairs to take loads in both directions and ensure greater stiffness and stability.
Function in equipment
Handles high radial loads and one-directional axial loads efficiently.
Provides excellent stiffness for precise shaft control and long service life.
Designed to support axial load in one direction; use in pairs for both directions.
Suitable for high-speed operations up to 7,000 rpm (grease lubricated).
Engineered for low friction, smooth operation and less heat generation.
Ensures reliable performance even in harsh and heavy load conditions.
Typical applications
- Wheel Hubs
- Differentials
- Gearboxes
- Input / Output Shafts
- Heavy Duty Trucks
- Agricultural Machinery
- Industrial Machinery
- Conveyor Systems
- Mining & Construction Equipment
- Pumps (Heavy Duty)
- Marine & Offshore Equipment
Key benefits
- ✓Handles heavy radial and one-directional axial loads
- ✓High load carrying capacity
- ✓High stiffness and stability
- ✓Low friction and smooth operation
- ✓Long service life in demanding applications
- ✓Supports high-speed performance
- ✓Easy to mount and maintain
- ✓Cost-effective and reliable solution
- ✓Ideal in paired (DB / DF) arrangement for bi-directional thrust
Spherical roller bearings
Double row, barrel rollers — very heavy load, self-aligning
5-292203 R
Double-row spherical roller bearing
⌀22.9 × ⌀40 × 12 mm
Radial, cylindrical rollers
Product photo
Key characteristics
Designation breakdown
| 5 | Accuracy class — heat-resistant steel |
| 292 | Bearing type |
| 203 | Size series |
| R | P-type separator (stamped steel) |
Purpose & application: Used in mechanical engineering, in various units and mechanisms.
Bearing 5-292203 R
Electric Motor (AC Induction Motor / Asynchronous Motor)
It is typically a Totally Enclosed Fan Cooled (TEFC) electric motor.
Electric motors are widely used in industry and daily life. They convert electrical energy into mechanical rotation.
Common applications:
- Pumps (water supply systems)
- Fans & blowers
- Compressors
- Conveyor systems
- Machine tools (lathe, drilling, milling)
- Household appliances (washing machines, mixers)
In industries like:
- Power plants
- Textile factories
- Agriculture
- Manufacturing plants
Needle roller bearings
Thin, long rollers — compact radial section
NA 4906
Needle roller bearing, with inner ring
⌀30 × ⌀47 × 18 mm
0.06 kg
Full complement
Product photo
Key characteristics
Designation breakdown
| NA | Bearing type — needle roller bearing with inner ring |
| 49 | Series — heavy duty |
| 06 | Bore code — 06 × 5 = 30 mm bore |
Purpose & application: Maximum load-carrying capacity for minimum radial space — gearbox idler and pinion shafts, rocker arm pivots, compact automotive and industrial mechanisms.

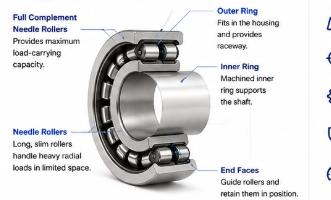

How NA 4906 bearing works
Needle rollers provide line contact with the raceways, allowing the bearing to support high radial loads in a compact design with minimal cross-section.
Function in equipment
Handles very high radial loads in a compact and space-saving design.
Inner ring provides a running surface directly on the shaft for accurate alignment.
Low section height makes it ideal for tight radial envelope applications.
Ensures stable operation, high stiffness and long service life even under shock loads.
Suitable for applications up to 7,500 rpm (grease lubricated).
Full complement design increases load capacity and improves reliability.
Typical applications
- Gearbox Idlers
- Pinion Shafts
- Rocker Arm Pivots
- Compact Gearboxes
- Automotive Differentials
- Industrial Mechanisms
- Pumps & Compressors
- Electric Motors
- Conveyor Roller Drives
- Machine Tool Spindles
- Printing & Packaging Machines
- Robotics & Automation Equipment
Key benefits
- ✓Maximum radial load-carrying capacity
- ✓Compact design for space saving
- ✓Low section height for tight spaces
- ✓High rigidity and long service life
- ✓Smooth and reliable operation
- ✓Reduces friction and wear
- ✓Supports high-speed performance
- ✓Machined inner ring for direct shaft support
- ✓Suitable for heavy-duty industrial and automotive applications
Thrust ball bearings
Single-direction, radial-thrust — combined axial and radial load
45-12-6206 P1
Single-direction thrust ball bearing
⌀30 × ⌀62 × 16 mm
0.26 kg
Radial + axial
Product photo
Key characteristics
Designation breakdown
| 45 | Accuracy class — high accuracy |
| 12 | Series by diameter and load capacity — medium series |
| 6206 | Basic design type — ball radial bearing, 6200 series |
| P1 | Split inner ring |
Purpose & application: Used in units where significant axial and radial loads must be carried together — wheel hubs, gearboxes and other units in automobiles and industrial equipment.
Bearing 45-126206 P1
Three-Phase AC Induction Motor (TEFC – Totally Enclosed Fan Cooled Type)
This type of motor converts electrical energy into mechanical rotation.
Common Applications:
- Water pumps & irrigation systems
- Industrial machines & conveyors
- HVAC systems (fans & blowers)
- Compressors
- Textile & manufacturing plants
These motors are widely used because they are self-starting and durable.
Pillow block / housed units
Insert bearing + cast housing — bolt-on mounting
UCP 206
Pillow block housed unit, cast iron, 2-bolt
⌀30 mm bore
1.05 kg
Eccentric locking collar
Product photo
Key characteristics
Designation breakdown
| UC | Insert bearing — deep groove type with extended inner ring and locking collar |
| P | Housing style — pillow block (plummer block) |
| 206 | Bore code — 206 corresponds to 30 mm shaft |
Purpose & application: A pre-aligned, self-contained bearing unit that bolts straight to a frame — fast to fit and simple to service in the field on conveyors, augers and agricultural and material-handling equipment.

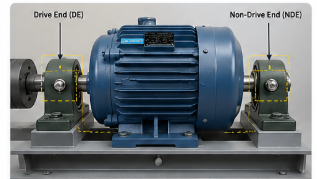

How UCP 206 bearing is used in the motor
UCP 206 is used on both ends of the motor shaft to provide support, maintain alignment and ensure smooth rotation.
Function in the motor
- Supports the motor shaft and reduces friction.
- Maintains proper alignment between motor and driven equipment.
- Absorbs radial loads and minor axial loads.
- Ensures smooth, efficient and vibration-free operation.
- Eccentric locking collar ensures a secure fit on the shaft.
Linear motion bearings
Recirculating ball bushing — straight-line travel
LM30UU
Linear ball bushing, closed type
⌀30 × ⌀45 × 64 mm
0.20 kg
Sealed both ends
Product photo
Key characteristics
Designation breakdown
| LM | Bearing type — linear motion ball bushing |
| 30 | Shaft diameter — 30 mm |
| UU | Seal suffix — end seals fitted both sides |
Purpose & application: Recirculating balls carry radial load while allowing unlimited straight-line travel along a hardened shaft — CNC axes, pneumatic cylinders, 3D printers and general automation slides.
How LM30UU linear ball bushing is used
The LM30UU bushing moves along the shaft, recirculating the balls internally, allowing unlimited linear travel with high precision and low friction.
Function in linear motion systems
Enables low-friction, smooth and accurate straight-line motion.
Carries radial loads efficiently while maintaining precision.
Supports the moving part and maintains alignment along the shaft.
Recirculating balls minimize friction, ensuring longer life and better efficiency.
Seals on both ends protect against dust and contamination, extending service life.
Typical applications
- CNC Machines (Linear Axes)
- 3D Printers
- Automation & Robotics
- Pneumatic & Hydraulic Cylinders
- Packaging & Printing Machines
- Measuring & Inspection Equipment
- General Industrial Automation
Key benefits
- ✓High precision linear motion
- ✓Low friction & smooth operation
- ✓High load capacity
- ✓Sealed on both ends for contamination protection
- ✓Easy to install and maintain
- ✓Suitable for high-speed applications
Where they run
Industries we supply into
Different sectors load a bearing differently — heat, contamination, shock load and duty cycle all change the right choice.
Automotive & wheel-end
Textile machinery
Steel & metal processing
Pumps & electric motors
Construction equipment
Railways
Wind & renewable energy
Agricultural machinery
Why Debraj
Sourcing bearings is easy to get wrong once
Wrong tolerance class, wrong seal, wrong load rating — any of it shortens the life of the machine it's sitting in. Here's how we keep that from happening.
We ask about the application, not just the part number
Speed, load direction, temperature and contamination change which series actually belongs in the housing.
Cross-reference support
Give us a competitor part number or an old bearing's markings and we'll match it to an equivalent in stock.
Genuine, traceable stock
Every bearing we supply is sourced through channels we can trace back to the manufacturer.
Built for repeat, scheduled orders
Set up a standing order for the parts your maintenance schedule consumes on a known cycle.
Typical selection sheet
What we ask before quoting
Send us these and we'll come back with a matched recommendation, not just a price.
Get in touch
Request a quote or ask a technical question
Tell us the part number or application and we'll get back with availability, lead time and pricing.
